Boldan Inversion drums come in a wide range of sizes to suit any relining project. The streamline design allows ease of access, while still maintaining good liner capacity.
Combine the Boldan Drums with the full range of Pipe Relining equipment on offer to establish the perfect relining set-up.
Boldan Extruder ProSeries Inversion Drums
The Boldan Extruder ProSeries is a slimline inversion drum which comes in a range of sizes to meet your requirements. With the capability to apply steam, hot water and UV curing methods these drums can do it all.
- Extruder ProSeries 350
Range DN50 – DN150- Adjustable angle
- Integrated pressure gauge
- Capacity up to 20 m of DN100 liner
- Extra-large service window
- 6” Storz coupling
- Safety valve 0.9 bar
- Made in Finland
- Extruder ProSeries 550
- Range DN50 – DN150
- Adjustable angle
- Integrated pressure gauge and thermometer
- Service window
- Capacity up to 20m of DN150 liner
- Weight 44,0 kg
- Height 1080 mm
- Width 630 mm
- 6″ Storz coupling
- Safety valve 0.9 bar
- Made in Finland
- Extruder ProSeries 700
- Range DN50 – DN225
- Adjustable angle
- Integrated pressure gauge and thermometer
- Capacity up to 44m DN150 liner
- Height 1161 mm
- Width 630 mm
- Weight 53,0 kg
- Service window
- 6″ Storz coupling
- Safety valve 0.9 bar
- Made in Finland

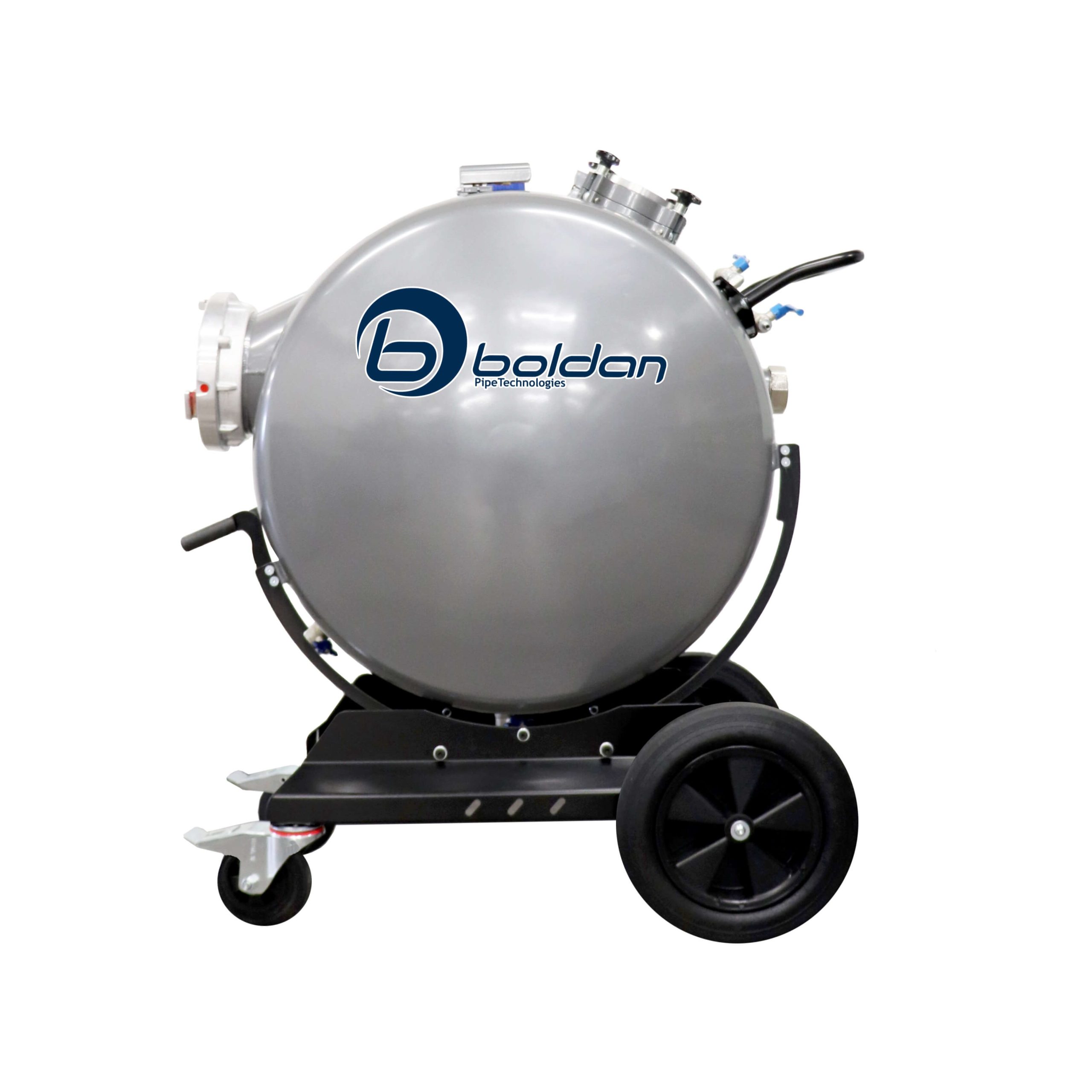

- Extruder ProSeries 900
- Range DN50 – DN300
- 8” Storz Coupling
- Height 1300 mm, width 680 mm
- 130° adjustable angle
- Integrated pressure gauge
- Service window + sight glass
- Connection for hot water installations & drain valve
- CAPACITY (4 mm liner):
- DN50 – 115 m
- DN70 – 95 m
- DN100 – 75 m
- DN150 – 58 m
- DN200 – 50 m
- Made in the EU
Coming Soon…
